In today's technologically advanced world, the seamless operation of sensitive equipment is paramount across various sectors, from healthcare and data centers to advanced manufacturing and telecommunications. These critical applications rely heavily on clean and stable power sources to function correctly and avoid costly disruptions. Generator sets are often deployed as backup or primary power sources to ensure continuous operation during grid outages or in off-grid locations. However, the power generated by these sets is not always perfectly clean; it can be contaminated with harmonic distortion, a phenomenon that can significantly impact the performance and longevity of sensitive equipment. Understanding and effectively managing harmonic distortion in generator sets is therefore not just best practice, but a necessity for safeguarding sensitive equipment and ensuring operational reliability.
Understanding Harmonic Distortion in Generator Sets
Harmonic distortion, at its core, refers to the presence of unwanted frequency components in an electrical power system that are integer multiples of the fundamental frequency (typically 50Hz or 60Hz). These additional frequencies, or harmonics, are superimposed on the pure sinusoidal waveform of the fundamental frequency, distorting it. In generator sets, harmonic distortion primarily arises from non-linear loads connected to the system. These loads, which include devices like variable frequency drives (VFDs), uninterruptible power supplies (UPS), electronic lighting, and modern power electronic devices, draw current in a non-sinusoidal manner. This non-sinusoidal current demand, when interacting with the impedance of the generator and associated wiring, creates voltage harmonics, leading to overall harmonic distortion in the power output. It's worth noting that even the generator itself can contribute to harmonic distortion, although typically to a lesser extent compared to non-linear loads.
The Detrimental Effects on Sensitive Equipment
The presence of harmonic distortion can wreak havoc on sensitive equipment, leading to a range of operational problems and potential failures. For instance, in medical equipment, harmonic distortion can interfere with diagnostic accuracy and the reliable operation of life-support systems. In data centers, it can cause overheating in transformers and neutral conductors, leading to insulation breakdown and potential fires. IT equipment, in general, can experience data corruption, system instability, and reduced lifespan due to harmonic-induced stress on components. Industrial control systems, vital for automated processes, can suffer from erratic behavior, sensor malfunctions, and inaccurate readings, potentially leading to production downtime and quality issues. Moreover, harmonic distortion can increase energy losses in the system, reduce power factor, and cause nuisance tripping of circuit breakers, further compounding operational inefficiencies and disruptions. Have you ever considered the hidden costs associated with harmonic distortion? They can be substantial, encompassing equipment damage, downtime, repair expenses, and decreased productivity.
Sources of Harmonic Distortion in Generator Systems
Pinpointing the sources of harmonic distortion is crucial for effective management. As mentioned earlier, non-linear loads are the primary culprits. Modern electronic devices are increasingly reliant on power electronics, which inherently introduce harmonics. Consider the proliferation of LED lighting and energy-efficient appliances; while beneficial for energy conservation, their internal circuitry often utilizes rectifiers and switching power supplies that draw non-sinusoidal currents. Variable frequency drives, widely used for motor speed control in industrial and commercial applications, are significant harmonic generators. Uninterruptible power supplies, essential for protecting sensitive equipment during power outages, also contribute to harmonic distortion due to their rectifier/inverter stages. Even office equipment like computers and laser printers, when aggregated, can contribute noticeably to the overall harmonic distortion levels in a building's electrical system. Understanding the characteristics of these loads and their harmonic contribution is the first step towards mitigating their impact.
Standards and Guidelines for Harmonic Limits
Recognizing the pervasive nature of harmonic distortion and its potential consequences, various international standards and guidelines have been established to regulate harmonic levels in electrical power systems. IEEE 519, "IEEE Recommended Practice and Requirements for Harmonic Control in Electric Power Systems," is a widely recognized standard that provides recommendations for harmonic voltage and current limits at the point of common coupling (PCC) between the utility and the user. This standard categorizes harmonic distortion based on total harmonic distortion (THD) and individual harmonic orders, setting acceptable limits for different voltage and current levels. Other relevant standards, such as IEC 61000-3-2 and IEC 61000-3-4, address harmonic emission limits for equipment connected to public low-voltage and medium-voltage systems, respectively. Adherence to these standards is not only a matter of regulatory compliance but also a proactive measure to ensure power quality and protect sensitive equipment. Frankly speaking, neglecting these standards can lead to significant operational and financial risks.
Harmonic Mitigation Techniques in Generator Sets
Effectively managing harmonic distortion requires a multi-faceted approach, encompassing both generator set design and load-side mitigation strategies. Generator manufacturers are increasingly incorporating design features to minimize inherent harmonic generation. These may include specialized winding configurations that reduce harmonic content in the generated voltage waveform. Advanced Automatic Voltage Regulators (AVRs) with digital control capabilities can also play a role in minimizing voltage distortion. Furthermore, some generator sets are equipped with built-in harmonic filters or are designed to be compatible with external harmonic filters. These filters, typically passive or active, are designed to attenuate specific harmonic frequencies, thereby reducing overall harmonic distortion. Active filters, while more complex and potentially more expensive, offer superior performance in dynamically adapting to changing load conditions and harmonic profiles. Choosing a generator set specifically designed for low harmonic distortion applications is a crucial first step in protecting sensitive equipment.
Load-Side Harmonic Mitigation Strategies
While generator set design plays a vital role, load-side mitigation is equally important, especially since non-linear loads are the primary source of harmonics. Passive harmonic filters, consisting of inductors, capacitors, and resistors, can be installed at the load side to shunt harmonic currents away from the power system. These filters are tuned to specific harmonic frequencies and are relatively cost-effective for fixed harmonic profiles. Active harmonic filters, as mentioned earlier, offer more sophisticated and adaptable mitigation, injecting current harmonics that are equal in magnitude but opposite in phase to the load harmonics, effectively canceling them out. Isolation transformers can also be employed to block the propagation of harmonic currents between different parts of the electrical system. Furthermore, specifying low-harmonic versions of equipment, such as low-harmonic VFDs or UPS systems, can significantly reduce the overall harmonic burden on the generator set and the entire power system. It's worth noting that a combination of generator-side and load-side mitigation techniques often provides the most effective and comprehensive harmonic management solution.
Selecting Generator Sets for Sensitive Loads
When selecting generator sets for applications involving sensitive equipment, harmonic distortion management should be a paramount consideration. It's not enough to simply choose a generator based on power rating; the quality of power output, particularly in terms of harmonic content, is equally critical. Specifying "low-harmonic" or "THD-optimized" generator sets is a crucial first step. Requesting detailed harmonic performance data from the generator manufacturer, including THD levels under various load conditions, is highly recommended. Considering generator sets with advanced AVRs and built-in harmonic mitigation features can provide an added layer of protection. Furthermore, consulting with power quality experts to conduct a thorough harmonic analysis of the anticipated load profile and system requirements can help in selecting the most appropriate generator set and associated mitigation equipment. In my experience, proactive planning and careful selection at the outset can save significant headaches and costs down the line.
Monitoring and Maintaining Harmonic Levels
Effective harmonic distortion management is not a one-time effort but an ongoing process that requires regular monitoring and maintenance. Harmonic levels can change over time due to variations in load profiles, equipment aging, or the addition of new non-linear loads. Periodic harmonic measurements using power quality analyzers should be conducted to assess the current harmonic distortion levels and identify any potential issues. Analyzing the harmonic spectrum can help pinpoint the dominant harmonic frequencies and guide targeted mitigation efforts. Regular inspection and maintenance of harmonic filters, both passive and active, are essential to ensure their continued effectiveness. Furthermore, monitoring the performance of sensitive equipment for any signs of harmonic-related problems, such as overheating, malfunctions, or premature failures, can provide early warnings and trigger corrective actions. Proactive monitoring and maintenance are key to ensuring long-term power quality and the reliable operation of sensitive equipment. Why is this approach so effective? Because it allows for timely intervention before minor harmonic issues escalate into major problems.
Our Solutions for Harmonic Distortion Management

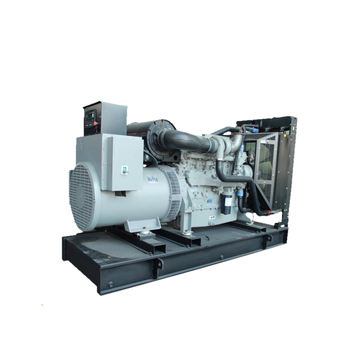

At our company, we understand the critical importance of clean and reliable power for sensitive equipment. We offer a comprehensive range of generator sets specifically designed with harmonic distortion management in mind. Our generator sets incorporate advanced technologies, including optimized winding designs, sophisticated AVRs, and options for integrated harmonic filters, to minimize harmonic generation at the source. We also provide expert consultation services to help you assess your power quality needs, analyze your load profiles, and select the most appropriate generator set and mitigation solutions for your specific application. Furthermore, we offer ongoing monitoring and maintenance services to ensure that your generator system continues to deliver clean power and protect your sensitive equipment over the long term. Our commitment is to provide you with not just a generator set, but a complete power quality solution that safeguards your operations and minimizes the risks associated with harmonic distortion.
Conclusion: Ensuring Clean Power for Critical Operations
In conclusion, harmonic distortion management in generator sets for sensitive equipment is not merely a technical detail; it's a fundamental requirement for ensuring operational reliability, equipment longevity, and overall system efficiency. Understanding the sources and impacts of harmonic distortion, adhering to relevant standards, implementing effective mitigation techniques, and proactively monitoring harmonic levels are all essential components of a comprehensive harmonic management strategy. By prioritizing power quality and choosing generator sets designed for low harmonic distortion, along with appropriate load-side mitigation measures, organizations can safeguard their sensitive equipment, minimize downtime, and ensure the uninterrupted operation of their critical applications. Ultimately, investing in harmonic distortion management is an investment in operational resilience and long-term success. Remember, clean power is the lifeblood of modern sensitive equipment, and managing harmonic distortion is the key to keeping that lifeblood flowing smoothly.
