To understand why an AC generator is called an "AC generator," we need to break down the components of the name itself. "AC" stands for Alternating Current, and "generator" refers to a device that converts mechanical energy into electrical energy. Therefore, an AC generator is a device specifically designed to produce alternating current. But that's just scratching the surface. The more important question is *why* does it produce alternating current, and what makes it different from a generator that produces direct current (DC)? The answer lies in its fundamental design and how it manipulates electromagnetic induction.

The Principle of Electromagnetic Induction

At the heart of every AC generator lies the principle of electromagnetic induction, discovered by Michael Faraday. This principle states that a changing magnetic field can induce an electromotive force (EMF), which is essentially voltage, in a conductor. Put simply, if you move a wire through a magnetic field, or change the strength of the magnetic field around a wire, you create electricity. It's this very principle that allows an AC generator to function. The faster the movement or change, and the stronger the magnetic field, the greater the voltage produced. Consider a simple setup: a loop of wire rotating within a stationary magnetic field. As the loop rotates, the amount of magnetic flux passing through the loop changes continuously. This change in flux is the key to generating an alternating current.

How Rotation Generates Alternating Current

The rotating loop of wire within the magnetic field is crucial to understanding the "alternating" part of "AC generator." As the loop rotates, the angle between the magnetic field lines and the surface of the loop constantly changes. When the loop is perpendicular to the field lines, the maximum amount of magnetic flux passes through it. As it rotates, the flux decreases, inducing a voltage in one direction. When the loop completes a half-rotation (180 degrees), it becomes parallel to the field lines, and the flux is minimal. Beyond this point, the loop continues to rotate, and the flux starts increasing again. However, this time, the direction of the induced voltage is reversed. This continuous change in the direction of the voltage is what creates alternating current – a current that periodically reverses direction. This cycle repeats with each rotation of the loop, producing a sinusoidal waveform, which is the characteristic shape of AC voltage and current.

The Significance of Slip Rings

To extract the alternating current generated in the rotating loop, AC generators typically use slip rings. Slip rings are continuous rings that are in constant contact with brushes. The brushes are stationary and connected to the external circuit. This configuration allows the current generated in the rotating loop to be transferred to the external circuit without interruption and without changing direction. This is in stark contrast to a DC generator, which uses a commutator to reverse the connections every half-cycle, effectively converting the alternating current generated in the loop into direct current in the external circuit. The absence of a commutator in an AC generator is fundamental to its operation and to the alternating nature of the current it produces.

Comparing AC and DC Generators

The fundamental difference between AC and DC generators lies in how the current is delivered to the external circuit. As previously discussed, AC generators use slip rings, while DC generators use commutators. The commutator in a DC generator acts as a mechanical rectifier, converting the alternating current generated in the rotating armature into direct current at the output terminals. While both types of generators rely on electromagnetic induction, the method of current delivery shapes their output characteristics. DC generators are often used in applications requiring a stable and constant voltage, such as charging batteries or powering certain types of motors. AC generators, on the other hand, are preferred for long-distance power transmission and powering many household appliances due to the ease with which AC voltage can be stepped up or down using transformers.

Real-World Applications of AC Generators

AC generators are ubiquitous in modern society, forming the backbone of our electrical power grids. Power plants, whether they use coal, natural gas, nuclear power, or renewable sources like wind or hydropower, all rely on AC generators to convert mechanical energy into electricity. For example, in a hydroelectric power plant, the force of falling water turns turbines connected to AC generators, producing electricity. Similarly, in a wind turbine, the wind's energy spins the blades, which in turn drive an AC generator. Even in portable generators used for backup power or in remote locations, the underlying principle remains the same: convert mechanical energy into alternating current. The ability of AC to be efficiently transmitted over long distances makes it the ideal choice for large-scale power distribution.

Efficiency and Design Considerations

The efficiency of an AC generator is a critical factor in its design and operation. Engineers constantly strive to minimize energy losses due to factors like friction, resistance in the windings, and eddy currents in the core. The design of the magnetic circuit, the type of materials used for the windings and core, and the cooling system all play crucial roles in maximizing efficiency. Larger generators often incorporate sophisticated cooling systems, such as hydrogen cooling, to dissipate heat and prevent overheating. Furthermore, the number of poles (north and south magnets) in the generator influences the frequency of the AC output. In many countries, the standard frequency is 50 Hz or 60 Hz, which is carefully controlled by regulating the speed of the generator and the number of poles.

Beyond the Basics: Advanced AC Generator Types

While the basic principle of AC generation remains the same, there are various types of AC generators designed for specific applications. Synchronous generators are widely used in large power plants, providing a stable and precisely controlled frequency. Induction generators, also known as asynchronous generators, are often used in wind turbines due to their simplicity and ability to operate over a range of speeds. Permanent magnet generators utilize permanent magnets instead of electromagnets for the magnetic field, offering advantages in terms of efficiency and size. The choice of generator type depends on factors like power output, speed requirements, and application-specific needs. Interestingly, the advancements in power electronics are allowing for more sophisticated control and integration of these different generator types into modern power systems.

Is there a future for DC generation?

While AC generators dominate power grids, DC power is making a comeback in certain applications. High-voltage direct current (HVDC) transmission is becoming increasingly popular for long-distance power transfer, offering advantages in terms of efficiency and stability compared to AC transmission in certain scenarios. Furthermore, many electronic devices and renewable energy systems (like solar panels) inherently produce DC power. This necessitates AC to DC conversion for many applications. The rise of DC microgrids and energy storage systems is also driving renewed interest in DC generation and distribution. It’s certainly something that will be worth watching in the coming years. So, given this resurgence, you might ask, *could* AC generators eventually be replaced by DC generators? It's unlikely in the immediate future, given the established infrastructure and advantages of AC power transmission, but technological advancements could certainly shift the balance over time.

Practical Example: Emergency Backup Generators

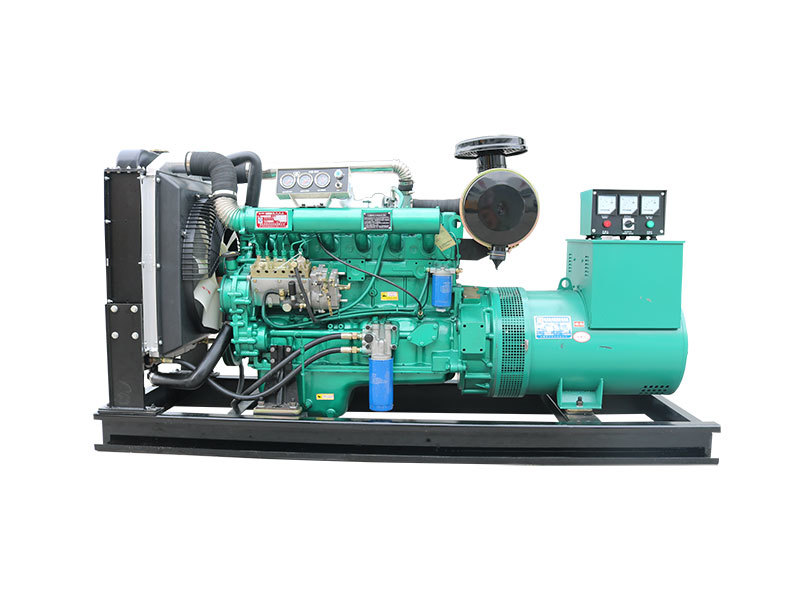

A very accessible example of AC generators in action is found in emergency backup generators. Many homes and businesses have these as a contingency plan in the event of a power outage. These generators, often powered by gasoline or natural gas, use an engine to turn a rotor within a magnetic field, producing AC electricity to power essential circuits. Examining one of these generators closely reveals the basic components described above: the engine providing mechanical energy, the rotating armature, the magnetic field (often created by electromagnets powered by the generator itself), and the output terminals providing the alternating current. While smaller and less sophisticated than the generators found in power plants, they operate on the same fundamental principles, showcasing the widespread applicability of AC generation technology.

In Conclusion: Why "AC Generator" Makes Perfect Sense

Ultimately, an AC generator is so called because it is a machine designed and built specifically to generate Alternating Current. The name perfectly describes its function. It leverages electromagnetic induction, uses slip rings to deliver the alternating current, and stands in contrast to DC generators which, through the use of commutators, produce direct current. From massive power plants to small emergency generators, the AC generator is a cornerstone of our electrically powered world, and understanding the "AC" part of its name requires appreciating the science of alternating current generation. And now, hopefully, you do!
